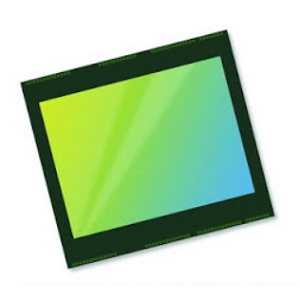

OV32A

CMOS Image Sensor by OmniVision Technologies

Note: Your Quotation Request will be directed to OmniVision Technologies.

The OV32A from OmniVision Technologies is a 32 megapixel CMOS image sensor designed for high-end smartphones. It uses a 4-cell color filter array, and has on-chip re-mosaic, for full-resolution, 32 MP Bayer output in normal light conditions. In low light conditions, the sensor can use near-pixel binning to output an 8 MP image with 4 times the sensitivity. It can output a variety of formats, including 32 MP at 15 frames per second (fps), 8 MP with 4-cell binning at 60 fps, 4K2K video at 60 fps, 1080p video at 120 fps and 720p video at 240 fps. The pad locations on the top and bottom of the image sensor reduce module size in the x-direction, which is ideal for front-facing cameras in thin-bezel, infinity-display smartphones.

 Product Specifications

    Product Details

    • Part Number :
      OV32A
    • Manufacturer :
      OmniVision Technologies
    • Description :
      32 MP CMOS Image Sensor for High-End Smartphones

    General Parameters

    • Type :
      Digital Image Sensor, Area Image Sensor
    • Shutter Type :
      Rolling Shutter
    • Pixel Size :
      0.8 µm x 0.8 µm
    • Resolution :
      6528 (H) x 4896 (V)
    • Chroma :
      RGB, Bayer Color
    • Active Array :
      5254.56 µm x 3947.328 µm
    • Optical Format :
      1/2.75 Inches
    • ADC Resolution :
      10 Bit
    • Frame Rate :
      15 to 240 fps
    • Clock Frequency :
      6 to 64 MHz
    • Supply Voltage :
      1.1 to 2.8 V
    • Power Consumption :
      324 to 473 mW
    • Package Type :
      COB, Die
    • Mega Pixels :
      32 MP

    Connections & Interface

    • Interface :
      SCCB, 4-lane MIPI, CPHY

    Applications

    • Application :
      Smart phones, Security Cameras, Internet of Things (IoT), Smart Home

    Physical Properties

    • Dimensions :
      6003 x 5418 µm

    Temperature

    • Operating Temperature :
      -30 to 85 Degree C
    • Storage Temperature :
      0 to 60 Degree C
