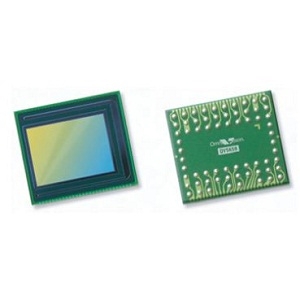

OV5658

CMOS Image Sensor by OmniVision Technologies
189 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OmniVision Technologies.

The OV5658 from OmniVision Technologies is a CMOS Image Sensor with Mega Pixels 5 MP, Frame Rate 30 to 90 fps, Sensitivity 1200 mV/lux-sec, Dynamic Range 73.3 dB, SNR 37 dB. More details for OV5658 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    OV5658
  • Manufacturer
    OmniVision Technologies
  • Description
    Color CMOS 5-megapixel (2592x1944) Image Sensor With OmniBSI+™ Technology

General Parameters

  • Resolution
    2592(H) x 1944(V)
  • Mega Pixels
    5 MP
  • Optical Format
    1/3.2 Inch
  • Shutter Type
    Rolling Shutter
  • Frame Rate
    30 to 90 fps
  • Pixel
    5 MP
  • Pixel Size
    1.75 µm x 1.75 µm
  • Active Array
    2592(H)µm x 1944(V)µm
  • Imaging Area
    4592 x 3423 µm
  • Sensitivity
    1200 mV/lux-sec
  • Dynamic Range
    73.3 dB
  • Chroma
    RGB, Bayer
  • SNR
    37 dB
  • Type
    Area Scan Sensor, Digital Sensor
  • Clock Frequency
    6 to 27 MHz
  • Supply Voltage
    1.5 to 3 V
  • Package Type
    COB, CSP
  • Note
    Ray Angle: 11 Degree

Connections & Interface

  • Interface
    MIPI

Applications

  • Application
    Security and Surveillance, Digital Video Camcorders(DVC), Digital Still Cameras(DSC), PC Multimedia, 3D Cameras

Physical Properties

  • Dimensions
    6360 µm x 5670 µm

Temperature

  • Operating Temperature
    -30 to 70 Degree C
