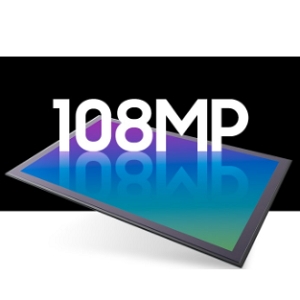

S5KHM1 | ISOCELL HM1

CMOS Image Sensor by Samsung Semiconductors
28 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Samsung Semiconductors.

The S5KHM1 | ISOCELL HM1 from Samsung Semiconductors is a CMOS Image Sensor with Mega Pixels 108 MP, Frame Rate Up to 10 Frames/sec (Normal), Up to 240 Frames/sec (Video), Supply Voltage 2.8 V (Analog), 1.8 V (I/O), 1.05 V (Digital Core Supply), Operating Temperature -20 to 70 Degree C. More details for S5KHM1 | ISOCELL HM1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    S5KHM1 | ISOCELL HM1
  • Manufacturer
    Samsung Semiconductors

General Parameters

  • Resolution
    12000 (H) x 9000 (V)
  • Mega Pixels
    108 MP
  • Optical Format
    1/1.33 Inches
  • Shutter Type
    Electronic Rolling Shutter (ERS), Global Reset
  • Frame Rate
    Up to 10 Frames/sec (Normal), Up to 240 Frames/sec (Video)
  • Pixel
    108 MP
  • Pixel Size
    0.8 x 0.8 µm
  • Pixel Type
    ISOCELL Plus
  • Chroma
    RGB, Bayer
  • ADC Resolution
    10 Bit
  • Supply Voltage
    2.8 V (Analog), 1.8 V (I/O), 1.05 V (Digital Core Supply)
  • Note
    Output Format: RAW8 (using DPCM/PCM compression), RAW10

Connections & Interface

  • Interface
    D-PHY (3Gbps per lane) 4 lanes/ C-PHY (3Gsps per lane) 3 lanes

Temperature

  • Operating Temperature
    -20 to 70 Degree C
