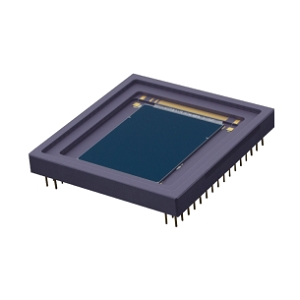

Capella LS | CIS120

CMOS Image Sensor by Teledyne Imaging

Note: Your Quotation Request will be directed to Teledyne Imaging.

The Capella LS | CIS120 from Teledyne Imaging is an easy-to-use general-purpose CMOS image sensor designed for harsh environments such as space applications. It has a resolution of 2048 x 2048 and back-illuminated 10µm square pixels with a quantum efficiency of 90% at 550 nm for outstanding low light sensitivity. The sensor has both a rolling shutter mode with a frame rate of 15 fps (12 bit) and a global shutter mode with a frame rate of 5 fps (14 bit). The combination of low readout noise and on-chip analog-to-digital conversion provides excellent image quality.

Product Specifications View similar products

Product Details

  • Part Number
    Capella LS | CIS120
  • Manufacturer
    Teledyne Imaging
  • Description
    4M Pixel General Purpose CMOS Image Sensor Back Illuminated Low Noise High Full Well Capacity and Digital Output

General Parameters

  • Resolution
    2048 (H) x 2048 (V)
  • Mega Pixels
    4 MP
  • Package Type
    Ceramic, PGA
  • Chroma
    Near-Infrared
  • Shutter Type
    Global Shutter, Rolling Shutter
  • Frame Rate
    5 to 15 Frames/sec
  • ADC Resolution
    8 Bit, 10 Bit, 12 Bit, 14 Bit
  • Pixel Size
    10 µm x 10 µm
  • Pixel
    4 MP
  • Imaging Area
    20.48 mm x 20.48 mm
  • Power Consumption
    <400 mW
  • Note
    Readout noise: 12 e- rms, Dark signal: 50 e-/pixel/s (RS) 300 e-/pixel/s (GS), QE: 90%

Connections & Interface

  • Interface
    LVDS

Applications

  • Application
    Earth Observation, Remote Sensing, Planetary Exploration, Space Science
  • Application Type
    Scientific, Space

Physical Properties

  • Package
    Ceramic PGA
