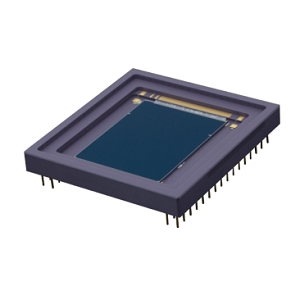

Capella XLS | CIS120-10

CMOS Image Sensor by Teledyne Imaging

Note: Your Quotation Request will be directed to Teledyne Imaging.

The Capella XLS | CIS120-10 from Teledyne Imaging is a CMOS Image Sensor with Mega Pixels 4.2 MP, Frame Rate 5 to 15 fps. More details for Capella XLS | CIS120-10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Capella XLS | CIS120-10
  • Manufacturer
    Teledyne Imaging
  • Description
    4.2 MP VIS-NIR Back Illuminated, Space Qualified Sensor

General Parameters

  • Resolution
    2048(H) x 2048(V)
  • Mega Pixels
    4.2 MP
  • Package Type
    CPGA, PGA
  • Chroma
    Visible, Near-Infrared
  • Shutter Type
    Rolling Shutter, Global Shutter
  • Frame Rate
    5 to 15 fps
  • ADC Resolution
    8 Bit, 12 Bit, 14 Bit
  • Pixel Size
    10 µm x 10 µm
  • Pixel
    4.2 MP
  • Imaging Area
    20.48 x 20.48 mm2
  • Type
    Back Illuminated Sensors, Space Qualified Sensor
  • Pixel Type
    BSI
  • Power Consumption
    <10 W
  • Note
    Full Well Capacity (FWC): 100K e-, Wavelength: 400 to 1000 nm (Near Infrared), Quantum Efficiency: 90%

Connections & Interface

  • Interface
    LVDS, SPI

Applications

  • Application
    Earth Observation, Remote Sensing, Planetary Exploration, Space Science
  • Application Type
    Scientific, Space

Physical Properties

  • Package
    Ceramic PGA
