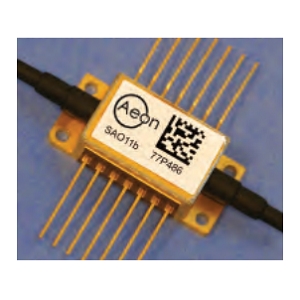

SAC11b

Optical Amplifier by Aeon Corporation
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Aeon Corporation.


Product Specifications

Product Details

  • Part Number
    SAC11b
  • Manufacturer
    Aeon Corporation
  • Description
    1530 to 1570 nm Module Pigtailed CW Booster Optical Amplifier, Semiconductor Optical Amplifier

General Parameters

  • Amplifier Type
    Booster Optical Amplifier (BOA), Semiconductor Optical Amplifier (SOA)
  • Bands
    O Band, C Band
  • Output Type
    CW
  • Center Wavelength
    1530 to 1570 nm
  • Package Type
    Pigtailed Module
  • Saturated Output Power
    12 dBm
  • Forward Voltage
    2 V
  • Saturated Output Power
    12 dBm
  • Package
    14-Pin MSA package
  • Power Consumption
    4 W
  • Thermistor Resistance
    10 kOhms
  • Gain
    9.5 dB
  • Note
    Operating Bias Current: 300 mA

Applications

  • Application
    Wide Optical Bandwidth, O-Band and C-Band Versions, Booster Amplifier, Telecom and Datacom, Loss Compensation, 40G and 100G Amplifiers

Environmental Conditions

  • Operating Temperature
    0 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
