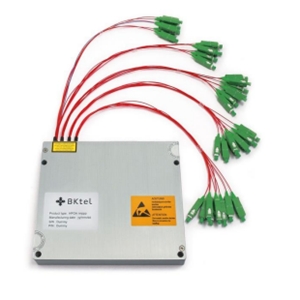

HPOA-M

Optical Amplifier by BKtel Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to BKtel Photonics.

The HPOA-M from BKtel Photonics is a Optical Amplifier with Input Power -8 to 15 dBm, Noise Figure 4.5 dB, Input Power -8 to 15 dBm, Output Power Up to 5 W, Isolation 30 dB. More details for HPOA-M can be seen below.

Product Specifications

Product Details

  • Part Number
    HPOA-M
  • Manufacturer
    BKtel Photonics
  • Description
    1545 to 1565 nm Multi-Port High Power Optical Amplifier with Up to 5 W Power

General Parameters

  • Amplifier Type
    Power Amplifier
  • Connectors
    SC/APC, FC/APC, LC/APC, MPO
  • Output Type
    CW
  • Package Type
    Module with Connector
  • Polarization Dependent Gain
    0.5 dB
  • RoHS
    Yes
  • Input Power
    -8 to 15 dBm
  • Noise Figure :
    4.5 dB
  • Interface
    RS-232
  • Package
    Module with Connector
  • Polarization Dependancy
    Yes
  • Polarization Mode Dispersion(PMD)
    0.5 ps
  • Power Consumption
    <50 W
  • Return Loss
    40 dB
  • Input Power
    -8 to 15 dBm
  • Output Power
    Up to 5 W
  • Isolation
    30 dB
  • Output Power :
    Up to 5 W
  • Supply Voltage (DC)
    5 to 24 V
  • Wavelength Range
    1545 to 1565 nm

Applications

  • Application
    CATV, Broadcasting, Telecom FTTH / Video Overlay, Test & Measurement

Environmental Conditions

  • Operating Temperature
    0 to 70 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes
