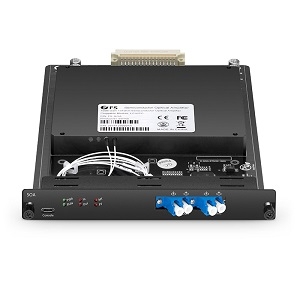

FS-SOA

Optical Amplifier by FS.COM Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to FS.COM Inc.

The FS-SOA from FS.COM Inc is a Optical Amplifier with Input Power -15 to 6 dBm, Noise Figure 6 to 8 dB, Saturated Output Power 8 dBm, Saturated Output Power 8 dBm, Gain 10 to 14 dB. More details for FS-SOA can be seen below.

Product Specifications

Product Details

  • Part Number
    FS-SOA
  • Manufacturer
    FS.COM Inc
  • Description
    Customized 1310nm Semiconductor Optical Amplifier

General Parameters

  • Amplifier Type
    Semiconductor Optical Amplifier (SOA)
  • Connectors
    LC/UPC, SC/UPC, FC/UPC, ST/UPC, LC/APC, SC/APC, FC/APC, ST/APC
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount
  • Polarization Dependent Gain
    0.3 dB
  • Control Mode
    Automatic Gain Control (AGC), Automatic Power Control (APC)
  • Input Power
    -15 to 6 dBm
  • Noise Figure :
    6 to 8 dB
  • Saturated Output Power
    8 dBm
  • Saturated Output Power
    8 dBm
  • Interface
    Ethernet, RS-485 and RS-232
  • Output Power Stability
    ±0.05 to ±0.1 dB
  • Package
    Rackmount
  • Polarization Dependancy
    Yes
  • Polarization Mode Dispersion(PMD)
    0.5 ps
  • Power Consumption
    18 W
  • Gain
    10 to 14 dB
  • Input Power
    -15 to 6 dBm
  • Supply Voltage (AC)
    85 to 264 VAC
  • Wavelength Range
    1290 to 1330 nm

Applications

  • Application
    100G optical transmission system

Environmental Conditions

  • Operating Temperature
    -5 to 60 Degree C
  • Storage Temperature
    -40 to 80 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes
