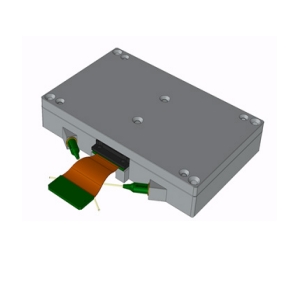

IXS-LNOA-C-X-RAD

Optical Amplifier by iXblue Photonics

Note: Your Quotation Request will be directed to iXblue Photonics.

The IXS-LNOA-C-X-RAD from iXblue Photonics is a Optical Amplifier with Input Power -50 to -20 dBm, Input Power -50 to -20 dBm, Output Power >5 dBm, Output Power >5 dBm, Wavelength Range 1550 to 1560 nm. More details for IXS-LNOA-C-X-RAD can be seen below.

Product Specifications

Product Details

  • Part Number
    IXS-LNOA-C-X-RAD
  • Manufacturer
    iXblue Photonics
  • Description
    Low Noise Optical Amplifier

General Parameters

  • Amplifier Type
    Low Noise Amplifier, Space Qualified Amplifier
  • Gain Flatness :
    <1 dB
  • Output Type
    CW
  • Package Type
    Module
  • Channels
    Single, Multi
  • Polarization Extinction Ratio :
    >23 dB
  • Input Power
    -50 to -20 dBm
  • Package
    Module
  • Power Consumption
    0.5 W
  • Small Signal Gain
    >40 dB
  • Input Power
    -50 to -20 dBm
  • Output Power
    >5 dBm
  • Output Power :
    >5 dBm
  • Wavelength Range
    1550 to 1560 nm

Applications

  • Application
    Telecommunication for satellite constellations, Low signal amplification on Rx side

Environmental Conditions

  • Operating Temperature
    0 to 60 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes

Physical Properties

  • Dimension
    110 to 70 x 18.5 mm
  • Weight
    <250 g
