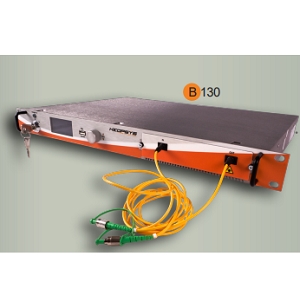

CEFA-C-WDM-LP

Optical Amplifier by Keopsys by LUMIBIRD
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Keopsys by LUMIBIRD.

The CEFA-C-WDM-LP from Keopsys by LUMIBIRD is a Optical Amplifier with Input Power -25 to 3 dBm, Noise Figure <5 to 7 dB, Input Power -25 to 3 dBm, Output Power 10 to 23 dBm, Output Power 10 to 23 dBm. More details for CEFA-C-WDM-LP can be seen below.

Product Specifications

Product Details

  • Part Number
    CEFA-C-WDM-LP
  • Manufacturer
    Keopsys by LUMIBIRD
  • Description
    Cw erbium fiber amplifier c-band gain flattened low power

General Parameters

  • Amplifier Type
    Erbium-Doped Fiber Amplifier (EDFA)
  • Connectors
    FC/APC, SC/APC, FC/SPC, SC/SPC
  • Bands
    C Band
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount, OEM Module
  • Polarization
    Random, Linear
  • Polarization Dependent Gain
    0.4 dB
  • Control Mode
    Automatic Current Control (ACC), Automatic Power Control (APC), Automatic Gain Control (AGC)
  • Polarization Extinction Ratio :
    >20 dB
  • RoHS
    Yes
  • Input Power
    -25 to 3 dBm
  • Noise Figure :
    <5 to 7 dB
  • Gain Material
    Erbium-Doped
  • Laser Class
    Class 4
  • Package
    Benchtop, OEM Module
  • Polarization Dependancy
    Yes
  • Polarization Mode Dispersion(PMD)
    0.4 ps
  • Small Signal Gain
    20 to 23 dB
  • Warranty
    1 Year
  • Input Power
    -25 to 3 dBm
  • Output Power
    10 to 23 dBm
  • Output Power :
    10 to 23 dBm
  • Wavelength Range
    1529 to 1566 nm
  • Note
    Gain ripple: ±5 dB, ±0.75 dB

Applications

  • Application
    Regional and metro DWDM networks, FTTH/CATV networks, Free space communication, Test and measurement

Environmental Conditions

  • Operating Temperature
    -20 to 65 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes
  • Fiber Mode
    Single Mode, Polarization Maintaning
  • Fiber Type
    SMF28 or PANDA
