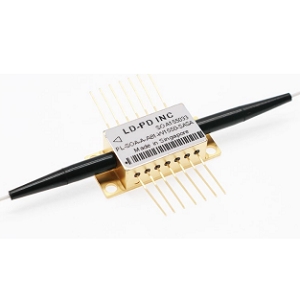

PL-SOA-A-A81-W1550-SASA

Optical Amplifier by LD-PD Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.


Product Specifications

Product Details

  • Part Number
    PL-SOA-A-A81-W1550-SASA
  • Manufacturer
    LD-PD Inc
  • Description
    1550 nm Butterfly CW Semiconductor Optical Amplifier

General Parameters

  • 3dB Wavelength Bandwidth
    60 to 70 nm
  • Amplifier Type
    Semiconductor Optical Amplifier (SOA)
  • Connectors
    FC/APC
  • Bands
    C Band
  • Output Type
    CW
  • Center Wavelength
    1550 nm
  • Package Type
    Butterfly
  • Polarization Dependent Gain
    1 to 1.8 dB
  • Noise Figure :
    8 to 9.5 dB
  • Saturated Output Power
    12 to 14 dBm
  • Forward Voltage
    1.6 to 1.8 V
  • Saturated Output Power
    12 to 14 dBm
  • Package
    14-pin butterfly package
  • Polarization Dependancy
    Yes
  • Thermistor Resistance
    10 kOhms
  • Gain
    10 to 13 dB
  • Output Power
    >13 dBm
  • Operating Current
    450 to 500 mA
  • Output Power :
    >13 dBm

Applications

  • Application
    Booster Amplifier, Telecom and Datacom, Loss Compensation

Fiber Parameters

  • Fiber Mode
    Single Mode
