PL-SOA-A-A81-W1650-SASA

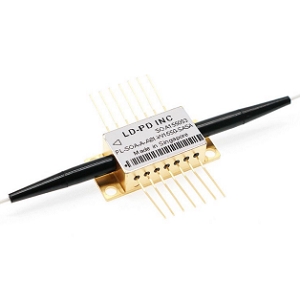

Optical Amplifier by LD-PD Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

Center Wavelength 1650nm; Output Power 13dBm; Bandwidth 60-70nm; SMF-28E+ FC/APC

Product Specifications

Product Details

  • Part Number
    PL-SOA-A-A81-W1650-SASA
  • Manufacturer
    LD-PD Inc
  • Description
    1650 nm Butterfly CW, Pulsed Semiconductor Optical Amplifier

General Parameters

  • 3dB Wavelength Bandwidth
    60 to 70 nm
  • Amplifier Type
    Semiconductor Optical Amplifier (SOA)
  • Connectors
    FC/APC
  • Output Type
    CW, Pulsed
  • Center Wavelength
    1650 nm
  • Package Type
    Butterfly
  • Polarization Extinction Ratio :
    20 to 27 dB
  • Noise Figure :
    4.6 to 10 dB
  • Saturated Output Power
    13 to 13.4 dBm
  • Saturated Output Power
    13 to 13.4 dBm
  • Package
    14-pin butterfly package
  • Polarization Dependancy
    Yes
  • Gain
    20 to 20.5 dB
  • Output Power
    13 dBm
  • Output Power :
    13 dBm
  • Supply Voltage (DC)
    1.845 to 3 V

Applications

  • Application
    Fiber transmission systems, Fiber optic gyros, Fiber optic sensors, Optical coherence tomography, Testing Light source

Fiber Parameters

  • Fiber Mode
    Single Mode
