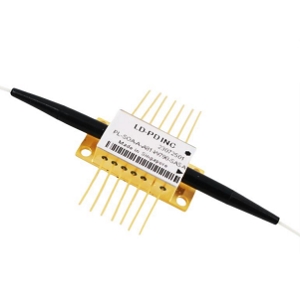

The PL-SOA-A-A81-W790-SASA from LD-PD Inc. is a Semiconductor Optical Amplifier (SOA) that operates at a wavelength of 760 nm - 810 nm. It has a center wavelength of 790 nm and saturated output power of 9 dBm. This SOA has a spectral width of 25 nm and gain ripple of 2 dB. It has a polarization-dependent gain of 10 dB and noise figure of 8 dB. This polarization-insensitive SOA has a built-in thermoelectric cooler and thermistor with a thermistor resistance of 10 kOhms. It has a forward voltage of 2.5 V and forward current of 300 mA. This SOA supports HI780 fiber and is compatible with FC/APC connectors. It is available in a 14-pin package and is ideal as a booster amplifier, telecom, datacom & loss compensation applications.
