MFE

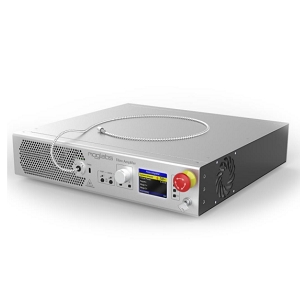

Optical Amplifier by MOGLABS
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to MOGLABS.

The MFE from MOGLABS is a Optical Amplifier with Output Power 500 mW to 20 W, Output Power 500 mW to 20 W, Wavelength Range 1060 to 1090 nm, 1550 to 1570 nm, 775 to 785 nm, Operating Temperature 10 to 30 Degree C. More details for MFE can be seen below.

Product Specifications

Product Details

  • Part Number
    MFE
  • Manufacturer
    MOGLABS
  • Description
    MFE High Power Fibre Amplifier

General Parameters

  • Package Type
    Module
  • Gain Material
    Erbium-Doped, Ytterbium-Doped
  • Interface
    USB, Ethernet, RJ45
  • Laser Class
    Class 3B
  • Output Power Stability
    2% RMS
  • Peak Power
    4.3 to 18 W
  • Warm up time
    15 to 30 min
  • Output Power
    500 mW to 20 W
  • Output Power :
    500 mW to 20 W
  • Wavelength Range
    1060 to 1090 nm, 1550 to 1570 nm, 775 to 785 nm

Applications

  • Application
    Telecom test and measurement, Atomic physics, Quantum computing

Environmental Conditions

  • Operating Temperature
    10 to 30 Degree C

Physical Properties

  • Dimension
    422 x 88.5 x 400 (W x H x D)
  • Weight
    7 kg
