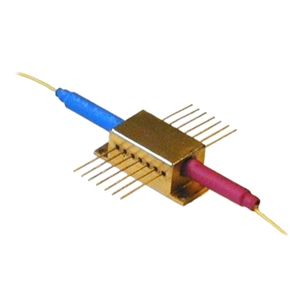

SOA-1060-14BF

Fiber Optic Amplifier by Nolatech

Note: Your Quotation Request will be directed to Nolatech.

The SOA-1060-14BF from Nolatech is a Fiber Optic Amplifier with AC Voltage 2.5 V, Noise Figure 7 to 9 dB, Saturated Output Power 7 to 9 dBm, Saturated Output Power 0.01 W, Signal Gain 20 to 28 dB. More details for SOA-1060-14BF can be seen below.

Product Specifications

Product Details

  • Part Number
    SOA-1060-14BF
  • Manufacturer
    Nolatech
  • Description
    Semiconductor Optical Amplifier 1060nm

General Parameters

  • Amplifier Type
    Semiconductor Optical Amplifier
  • Connectors
    FC/APC
  • Current
    300 to 350 mA
  • Fiber Modes
    Single Mode, Polarization Maintaining
  • Gain Bandwidth
    30 to 40 nm
  • Output Type
    CW, Pulse
  • Package Type
    Butterfly
  • Polarization
    10 dB
  • Wavelength
    1045 to 1055 nm
  • AC Voltage
    2.5 V
  • Noise Figure
    7 to 9 dB
  • Saturated Output Power
    7 to 9 dBm
  • Saturated Output Power
    0.01 W
  • Signal Gain
    20 to 28 dB
  • Wavelength
    1030 to 1070 nm

Temperature

  • Operating Temperature
    -20 to 70 Degree C
  • Storage Temperature
    -20 to 85 Degree C

Technical Documents

Click to view more product details on manufacturer's website
