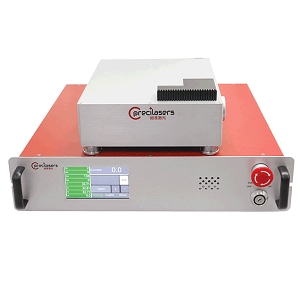

FA-SF-1064-100-CW

Optical Amplifier by PRECILASERS CO. LTD
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to PRECILASERS CO. LTD.

The FA-SF-1064-100-CW from PRECILASERS CO. LTD is a Optical Amplifier with Output Power 100 W, Output Power 100 W, Supply Voltage (AC) 100 to 240 VAC, 50/60Hz, Wavelength Range 1054 to 1074 nm. More details for FA-SF-1064-100-CW can be seen below.

Product Specifications

Product Details

  • Part Number
    FA-SF-1064-100-CW
  • Manufacturer
    PRECILASERS CO. LTD
  • Description
    1064 nm fiber amplifier

General Parameters

  • Amplifier Type
    Ytterbium-Doped Fiber Amplifier (YDFA)
  • Beam Quality Factor (M2)
    <1.15
  • Output Type
    CW
  • Center Wavelength
    1064 nm
  • Package Type
    Benchtop / Rackmount
  • Polarization Extinction Ratio :
    >23 dB
  • Cooling
    Air-Cooled, Water-Cooled
  • Gain Material
    Ytterbium-Doped
  • Linewidth
    5 kHz
  • Output Power Stability
    <0.5% RMS
  • Package
    Rackmount
  • Relative Intensity Noise
    <0.03% (10Hz-10 MHz)
  • Seed Laser Power
    >10 mW
  • Wavelength Tolerance
    ±10 nm
  • Output Power
    100 W
  • Output Power :
    100 W
  • Supply Voltage (AC)
    100 to 240 VAC, 50/60Hz
  • Wavelength Range
    1054 to 1074 nm
  • Note
    Output Power: 10 W, 30 W, 50 W, 130 W

Applications

  • Application
    Pump laser for OPO, Optical Lattice, Optical Traps, Optical Tweezers, Fundamental laser for 532 nm laser, Holography & Interferometry, High Resolution Spectroscopy

Fiber Parameters

  • Fiber Coupled
    Yes
