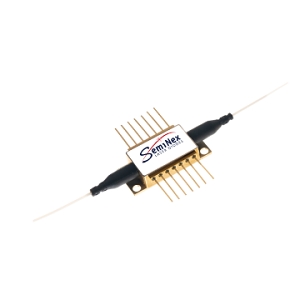

14BF-290

Optical Amplifier by SemiNex Corporation
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SemiNex Corporation.

The 14BF-290 from SemiNex Corporation is a Optical Amplifier with Noise Figure 6 dB, Gain 32 dB, Output Power 24.9 dBm, Operating Current 1 A, Output Power 24.9 dBm. More details for 14BF-290 can be seen below.

Product Specifications

Product Details

  • Part Number
    14BF-290
  • Manufacturer
    SemiNex Corporation
  • Description
    1310 nm Semiconductor Optical Amplifier (SOA) with 24.9 dBm Power

General Parameters

  • 3dB Wavelength Bandwidth
    80 nm
  • Amplifier Type
    Semiconductor Optical Amplifier (SOA)
  • Connectors
    FC/APC
  • Output Type
    CW
  • Center Wavelength
    1310 nm
  • Package Type
    Butterfly
  • Noise Figure :
    6 dB
  • Laser Class
    Class IIIb, Class IV
  • Package
    14-Pin Butterfly
  • Polarization Dependancy
    Yes
  • Polarization Dependent Loss
    0.4 dB
  • Return Loss
    45 dB (Input), 50 dB (Output)
  • Thermistor Resistance
    10 kOhms
  • Gain
    32 dB
  • Output Power
    24.9 dBm
  • Operating Current
    1 A
  • Output Power :
    24.9 dBm
  • Supply Voltage (DC)
    2 V
  • Wavelength Range
    1270 to 1350 nm
  • Note
    Jacket Diameter: 900 µm

Applications

  • Application
    LiDAR, Free Space Communications, Optical Fiber Communications, Network Test Equipment

Environmental Conditions

  • Operating Temperature
    -20 to 75 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes
  • Fiber diameter
    8 µm
  • Fiber Mode
    Single Mode, Polarization Maintaining
  • Fiber Length
    1 m
