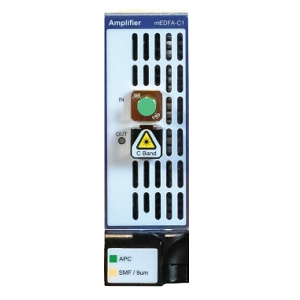

mEDFA-C11CB

Optical Amplifier by Viavi Solutions Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Viavi Solutions Inc..

The mEDFA-C11CB from Viavi Solutions Inc. is a Optical Amplifier with Noise Figure <4.5 to 5.5 dB, Gain >24 to 36 dB, Wavelength Range 1528 to 1569 nm, Operating Temperature 0 to 40 Degree C, Storage Temperature -30 to 60 Degree C. More details for mEDFA-C11CB can be seen below.

Product Specifications

Product Details

  • Part Number
    mEDFA-C11CB
  • Manufacturer
    Viavi Solutions Inc.
  • Description
    Erbium Doped Fiber Amplifier

General Parameters

  • Amplifier Type
    Erbium-Doped Fiber Amplifier (EDFA)
  • Connectors
    FC/APC
  • Bands
    C Band
  • Output Type
    CW
  • Package Type
    Benchtop / Rackmount
  • Channels
    Single
  • Polarization Dependent Gain
    <0.2 dB
  • Control Mode
    Automatic Gain Control (AGC), Automatic Power Control (APC)
  • Noise Figure :
    <4.5 to 5.5 dB
  • Gain Material
    Erbium-Doped
  • Laser Class
    Class 1M
  • Package
    Benchtop
  • Polarization Dependancy
    Yes
  • Polarization Dependent Loss
    <0.2 dB
  • Gain
    >24 to 36 dB
  • Wavelength Range
    1528 to 1569 nm

Applications

  • Application
    Amplification of sensitive signals in automated test systems, Power saturation recovery testing, OSNR noise loading

Environmental Conditions

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -30 to 60 Degree C

Fiber Parameters

  • Fiber Coupled
    Yes

Physical Properties

  • Dimension
    4.06 x 13.26 x 37.03 cm
  • Weight
    2.3 kg
