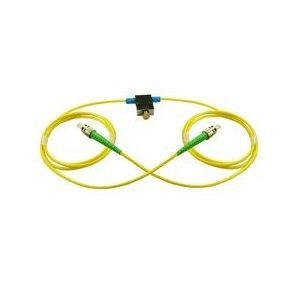

VOA-SM-64-C-1-2

Fiber Optic Attenuator by AFW Technologies
Request Quote

Note: Your Quotation Request will be directed to AFW Technologies.

The VOA-SM-64-C-1-2 from AFW Technologies is a Fiber Optic Attenuator with Attenuation 1 to 30 dB, Return Loss >45 dB, Operating Wavelength 1064 nm, Optical Input Power <300 mW. More details for VOA-SM-64-C-1-2 can be seen below.

Product Specifications

Product Details

  • Part Number
    VOA-SM-64-C-1-2
  • Manufacturer
    AFW Technologies
  • Description
    SM pigtailed variable optical attenuator, 1064nm, 3mm cable jacket, Hi1060 fiber, 1m fiber length, FC/APC connector both ends, 1dB-30dB attenuation range

Fiber Parameters

  • Fiber length
    1 m
  • Fiber Jacket
    3 mm
  • Fiber Mode
    Single Mode
  • Fiber Type
    Hi1060

Environmental Conditions

  • Operating Temperature
    0 to 60 Degree C

Electrical Specifications

  • Attenuation precision
    0.1 dB
  • Attenuator Type
    Variable Optical Attenuator
  • Back Reflection
    >45 dB
  • Attenuation
    1 to 30 dB
  • Return Loss
    >45 dB

Optical Specifications

  • Operating Wavelength
    1064 nm
  • Optical Input Power
    <300 mW

Connections & Interface

  • Optical Connector
    FC/APC
