C26135

Fiber Optic Cable by OFS Global
83 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OFS Global.

The C26135 from OFS Global is a Fiber Optic Cable with Core Diameter 62.5 µm, Cable Diameter 2.2 ± 0.1 mm x 4.6 Nominal, Operating Wavelength 850 nm, 1300 nm, Attenuation 3 to 5 dB/km. More details for C26135 can be seen below.

Product Specifications

Product Details

  • Part Number
    C26135
  • Manufacturer
    OFS Global
  • Description

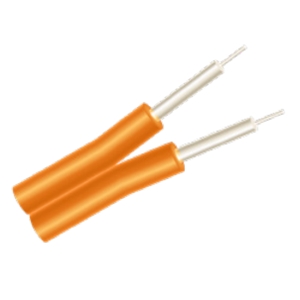

    2.2 mm Zipcord 62.5/200/230 Low Smoke Zero Halogen

Applications

  • Applications
    Nuclear Power Plants, Offshore Marine Platforms, Shipboard Systems, Wind Turbines

General Parameters

  • Outer Jacket Material
    Low Smoke Zero Halogen (LSZH)
  • Outer Cable Diameter
    2.2 ± 0.1 mm x 4.6 Nominal
  • Core Diameter
    62.5 µm
  • Cable Diameter
    2.2 ± 0.1 mm x 4.6 Nominal
  • Operating Wavelength
    850 nm, 1300 nm
  • Attenuation
    3 to 5 dB/km
  • Fiber Mode
    Multi Mode
  • Bend Radius Operation
    22 mm
  • Cable Type
    Duplex Cable, Zipcord
  • Construction
    Zipcord
  • Fiber Type
    Multimode Graded-Index
  • Installation Load
    25 lb. (111 N)
  • Operating Load
    5 lb. (22 N)
  • Outer Jacket Color
    Orange
  • Specialty Testing
    >50,000 Cycles
  • Weight
    <12.0 kg/km

Environmental Conditions

  • Operating Temperature
    -20 to 80 Degree C
  • Outdoor / Indoor
    Indoor
  • RoHs
    Yes
  • Storage Temperature
    -40 to 80 Degree C
