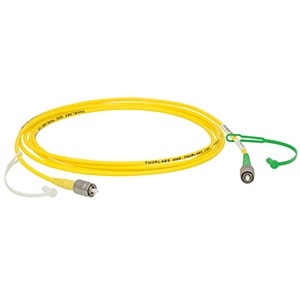

P4-405AR-2

Fiber Optic Cable by Thorlabs Inc
418 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The P4-405AR-2 from Thorlabs Inc is a Fiber Optic Cable with Coating Diameter 245 ± 15 µm, Cable Length 2 m, Cable Diameter 3 mm, Operating Wavelength 405 to 532 nm, Attenuation <30 to 50 dB/km. More details for P4-405AR-2 can be seen below.

Product Specifications

Product Details

  • Part Number
    P4-405AR-2
  • Manufacturer
    Thorlabs Inc
  • Description
    SM Patch Cable, AR-Coated FC/APC to Uncoated FC/PC, 405 - 532 nm, 2 m Long

Applications

  • Applications
    Fiber Collimation Packages, FiberPorts

Connections & Interface

  • Optical Connector
    FC/APC, FC/PC
  • Connector 1
    FC/APC
  • Connector 2
    FC/PC

General Parameters

  • Outer Jacket Material
    Polyvinyl Chloride (PVC)
  • Coating Diameter
    245 ± 15 µm
  • Cable Length
    2 m
  • Cable Diameter
    3 mm
  • Operating Wavelength
    405 to 532 nm
  • Attenuation
    <30 to 50 dB/km
  • Fiber Mode
    Single Mode
  • Cutoff Wavelength
    305 to 400 nm
  • Cladding Diameter
    125 ± 1 µm
  • Fiber Type
    SM400
  • Jacket Diameter
    3 mm
  • Mode Field Diameter
    2.5 to 3.4 µm
  • Average Reflectance
    Ravg <0.75%
  • Outer Jacket Color
    Yellow
  • Weight
    22.5 g
Click to view more product details on manufacturer's website
