PLCB-1X4

Fiber Optic Coupler by Fibertronics Inc.
10 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Fibertronics Inc..

The PLCB-1X4 from Fibertronics Inc. is a Fiber Optic Coupler with Optical Power 300 mW, Insertion Loss <7.3 dB, Wavelength 1260 nm, 1650 nm, Directivity 55 dB, Return Loss 50 to 55 dB. More details for PLCB-1X4 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PLCB-1X4
  • Manufacturer
    Fibertronics Inc.
  • Description

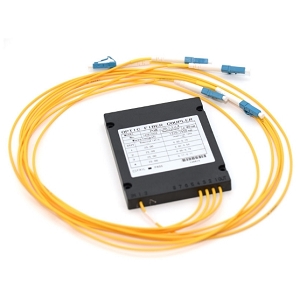

    1x4 PLC Fiber Optic Splitter in ABS Box

General Parameters

  • Coupler Type
    Planar Lightwave Circuit Splitter
  • Configuration
    1 x 4
  • Optical Power
    300 mW
  • Insertion Loss
    <7.3 dB
  • Wavelength
    1260 nm, 1650 nm
  • Directivity
    55 dB
  • Return Loss
    50 to 55 dB
  • Uniformity
    <0.8 dB
  • Polarization Dependent Loss
    <0.2 dB
  • Power Handling
    300 mW

Applications

  • Application
    Fiber to The Point (FTTX), Fiber to The Home (FTTH), Passive Optical Networks (PON), Gigabit Passive Optical Networks (GPON), Local Area Networks (LAN), Cable Television (CATV), Test Equipment
  • Application Industry
    Telecommunications, Fiber-to-the-Home (FTTH), Test & Measurement

Fiber Parameters

  • Fiber Coupled
    Corning SMF-28e Fiber
  • Fiber Modes
    Single Mode

Temperature

  • Operating Temperature
    -40 to 85 Degree C
