TW1550R5A1

Fiber Optic Coupler by Thorlabs Inc
240 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The TW1550R5A1 from Thorlabs Inc is a Fiber Optic Coupler with Optical Power 1 to 5 W, Excess Loss <0.15 dB, Insertion Loss <3.7 dB, Bandwidth ±100 nm, Wavelength 1550 nm. More details for TW1550R5A1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TW1550R5A1
  • Manufacturer
    Thorlabs Inc
  • Description

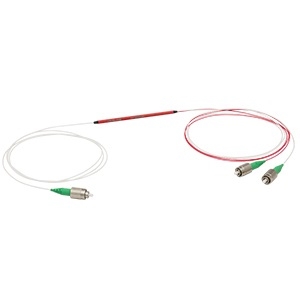

    1x2 Wideband Fiber Optic Coupler, 1550 ± 100 nm, 50:50 Split, FC/APC

General Parameters

  • Coupler Type
    Wideband Coupler
  • Configuration
    1 x 2
  • Optical Power
    1 to 5 W
  • Coupling Ratio
    50:50
  • Excess Loss
    <0.15 dB
  • Insertion Loss
    <3.7 dB
  • Directionality
    Directional
  • Center Wavelength
    1550 nm
  • Bandwidth
    ±100 nm
  • Connectors
    FC/APC
  • Wavelength
    1550 nm
  • Directivity
    >60 dB
  • Return Loss
    >60 dB
  • Coupling Tolerance
    ±5.0%
  • Tensile Strength
    10 N
  • Uniformity
    <0.5 dB
  • Polarization Dependent Loss
    <0.2 dB
  • Dimension
    (Dia) 3.2 mm x 75 mm

Fiber Parameters

  • Fiber Jacket
    900 µm
  • Fiber Coupled
    SMF-28
  • Fiber length
    0.8 m
  • Fiber Modes
    Single Mode

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
