PIDI-AAAA-B-C-D-E-F-G

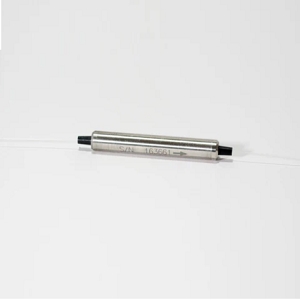

Fiber Optic Isolator by HJ Optronics, Inc.
28 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to HJ Optronics, Inc..

The PIDI-AAAA-B-C-D-E-F-G from HJ Optronics, Inc. is a Fiber Optic Isolator with Optical Power 1 W, 2 W, Isolation 16 to 35 dB, Insertion Loss 1.3 to 1.5 dB, Wavelength 2000 nm, Polarization Dependent Loss 0.2 dB. More details for PIDI-AAAA-B-C-D-E-F-G can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PIDI-AAAA-B-C-D-E-F-G
  • Manufacturer
    HJ Optronics, Inc.
  • Description
    2000 nm Polarization Insensitive Isolator

General Parameters

  • Optical Power
    1 W, 2 W
  • Type
    Polarization Insensitive Isolator
  • Isolation
    16 to 35 dB
  • Insertion Loss
    1.3 to 1.5 dB
  • Wavelength
    2000 nm
  • Center Wavelength
    2000 nm
  • Mode
    Single Mode
  • Peak Pulse Power
    10 kW
  • RoHS
    Yes
  • Stage
    Dual
  • Tensile Load
    5 N
  • Polarization Dependent Loss
    0.2 dB
  • Return Loss
    50 dB

Environmental Conditions

  • Operating Temperature
    -5 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Dimensions
    5.5 x 35 mm (Dia x L)

Applications

  • Application
    Fiber amplifier, fiber laser

Connections & Interface

  • Connectors
    FC/UPC, FC/APC, SC/UPC, SC/APC

Fiber Parameters

  • Fiber Coupled
    Fiber Coupled
  • Fiber length
    1 m
  • Fiber Jacket
    250 µm, 900 µm
  • Fiber Type
    SMF-28 fiber or Nuferm SM-1950 fiber
