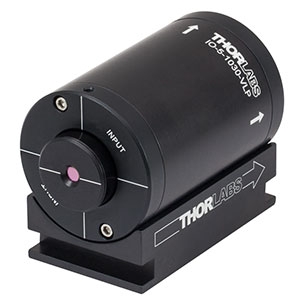

IO-5-1030-VLP

Fiber Optic Isolator by Thorlabs Inc
129 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The IO-5-1030-VLP from Thorlabs Inc is a Fiber Optic Isolator with Optical Power 1.7 W, Isolation 35 to 40 dB, Wavelength 1010 to 1050 nm. More details for IO-5-1030-VLP can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IO-5-1030-VLP
  • Manufacturer
    Thorlabs Inc
  • Description
    Free-Space Isolator, 1030 nm, Ø4.7 mm Max Beam, 1.7 W Max

General Parameters

  • Optical Power
    1.7 W
  • Type
    Free Space Isolator
  • Isolation
    35 to 40 dB
  • Wavelength
    1010 to 1050 nm
  • Beam Diameter
    4.7 mm
  • Clear Aperture
    5 mm
  • Polarizer Type
    Very Low Power (VLP)
  • Power Density
    25 W/cm2 (Blocking), 100 W/cm2 (Transmission)
  • Maximum Power
    1.7 W
  • Tuning Range
    1010 to 1050 nm

Physical Properties

  • Weight
    0.82 kg

Fiber Parameters

  • Fiber Coupled
    Free Space
