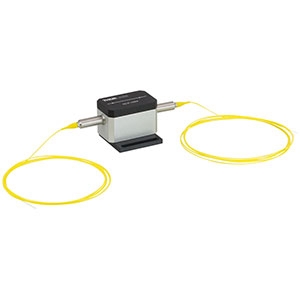

IO-F-1064

Fiber Optic Isolator by Thorlabs Inc

Note: Your Quotation Request will be directed to Thorlabs Inc.

The IO-F-1064 from Thorlabs Inc is a Fiber Optic Isolator with Optical Power 3 W, Isolation 35 to 36 dB, Insertion Loss 1 to 1.2 dB, Wavelength 1054 to 1074 nm, Polarization Dependent Loss <0.15 dB. More details for IO-F-1064 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IO-F-1064
  • Manufacturer
    Thorlabs Inc
  • Description
    Fiber Isolator, 1064 nm, SM, 3 W, No Connectors

General Parameters

  • Optical Power
    3 W
  • Type
    Polarization Independent Isolator
  • Isolation
    35 to 36 dB
  • Insertion Loss
    1 to 1.2 dB
  • Wavelength
    1054 to 1074 nm
  • Center Wavelength
    1064 nm
  • Mode
    Single Mode
  • Maximum Power
    3 W
  • Polarization Dependent Loss
    <0.15 dB
  • Return Loss
    >50 dB

Physical Properties

  • Weight
    0.130 kg

Fiber Parameters

  • Fiber Coupled
    Fiber Coupled
  • Fiber Type
    HI1060

Technical Documents

Click to view more product details on manufacturer's website
