IO-G-1550-APC

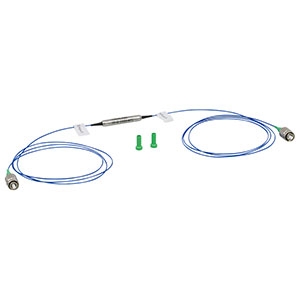

Fiber Optic Isolator by Thorlabs Inc
129 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The IO-G-1550-APC from Thorlabs Inc is a Fiber Optic Isolator with Optical Power <300 mW, Isolation >28 dB, Insertion Loss <0.85 dB, Wavelength 1550 nm, Return Loss >50 dB. More details for IO-G-1550-APC can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IO-G-1550-APC
  • Manufacturer
    Thorlabs Inc
  • Description
    Fiber Isolator, 1550 nm, PM, FC/APC

General Parameters

  • Optical Power
    <300 mW
  • Type
    Polarization Independent Isolator
  • Isolation
    >28 dB
  • Insertion Loss
    <0.85 dB
  • Accuracy
    ±20 nm
  • Wavelength
    1550 nm
  • Extinction Ratio
    >18 dB
  • Mode
    Polarization Maintaining
  • Peak Isolation
    42 dB
  • RoHS
    Yes
  • Return Loss
    >50 dB

Environmental Conditions

  • Operating Temperature
    -5 to 70 Degree C
  • Storage Temperature
    -40 to 80 Degree C

Physical Properties

  • Weight
    15 g

Fiber Parameters

  • Fiber Coupled
    Fiber Coupled
