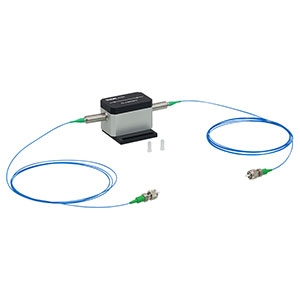

IO-J-980APC

Fiber Optic Isolator by Thorlabs Inc

Note: Your Quotation Request will be directed to Thorlabs Inc.

The IO-J-980APC from Thorlabs Inc is a Fiber Optic Isolator with Optical Power 3 W, Isolation 33 to 37 dB, Insertion Loss 1.1 to 1.2 dB, Wavelength 970 to 990 nm, Return Loss >50 dB. More details for IO-J-980APC can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IO-J-980APC
  • Manufacturer
    Thorlabs Inc
  • Description
    Fiber Isolator, 980 nm, PM, FC/APC

General Parameters

  • Optical Power
    3 W
  • Type
    Polarization Dependent Isolator
  • Isolation
    33 to 37 dB
  • Insertion Loss
    1.1 to 1.2 dB
  • Wavelength
    970 to 990 nm
  • Center Wavelength
    980 nm
  • Extinction Ratio
    >20 dB(PER)
  • Mode
    Polarization Maintaining
  • Maximum Power
    3 W
  • Return Loss
    >50 dB

Physical Properties

  • Weight
    1 kg

Fiber Parameters

  • Fiber Coupled
    Fiber Coupled
  • Fiber Type
    PM980-XP
