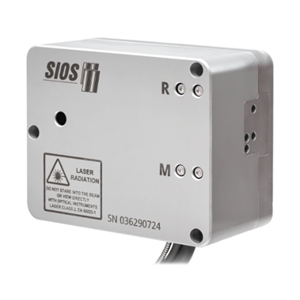

SP 5000 DI/DS

Interferometer by SIOS Meßtechnik
7 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SIOS Meßtechnik.

The SP 5000 DI/DS from SIOS Meßtechnik is a Interferometer with Wavelength 632.8 nm, Operating Temperature 15 to 30 Degree C. More details for SP 5000 DI/DS can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SP 5000 DI/DS
  • Manufacturer
    SIOS Meßtechnik
  • Description
    632.8 nm Displacement angle differential interferometer with 0 to 2 m Measurement Range

General Parameters

  • Type
    Displacement angle differential interferometer
  • Angular Resolution
    0.0035 arcsec
  • Measurement Type
    Angle, Wavelength, Yaw
  • Wavelength
    632.8 nm
  • Beam Distance
    15 mm (Length), 6 mm (Angle)
  • Cable Length
    6 m
  • Measuring Angle
    ±430 µrad (Plane Mirror)
  • Measuring Length
    0 to 2 m
  • Dimensions
    125 x 100 x 64 mm (Head), 450 x 400 x 150 mm (Electronic)
  • Frequency Stability
    2 to 10-8
  • Laser Source
    HeNe laser
  • Power Supply
    100 to 240 VAC, 47 to 63 Hz
  • Measurement Range
    0 to 2 m
  • Weight
    2.4 kg, 8 kg
  • Measurement Resolution
    15 mm (Length), 6 mm (Angle)
  • Measurement Speed
    3 m/s
  • Measuring Uncertainty
    0.15 µm/m (Length), ±0.04 % ± 0.04 µrad (Angle)
  • Note
    Temperature sensitivity: <20 nm/K, Warm-up time: 10 to 20 minutes

Connections & Interface

  • Interface
    RS232C, USB

Environmental Conditions

  • Operating Temperature
    15 to 30 Degree C

Applications

  • Applications
    Long-Term Measurements, OEM Applications, Highest Stability Requirements
