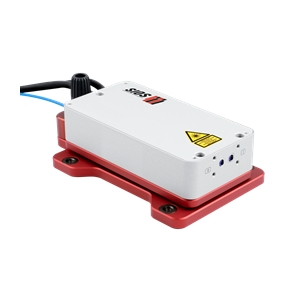

SP 5000 DS

Interferometer by SIOS Meßtechnik
7 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SIOS Meßtechnik.

The SP 5000 DS from SIOS Meßtechnik is a Interferometer with Wavelength 632.8 nm, Operating Temperature 15 to 30 Degree C. More details for SP 5000 DS can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SP 5000 DS
  • Manufacturer
    SIOS Meßtechnik
  • Description
    632.8 nm Double-Beam-Interferometer with 0 to 5 m Measurement Range

General Parameters

  • Type
    Double-Beam-Interferometer
  • Measurement Type
    Angle, Wavelength, Yaw
  • Wavelength
    632.8 nm
  • Beam Distance
    12 mm
  • Cable Length
    3 m
  • Measuring Angle
    ±12.5 Degree (Reflector), ±430 µrad (Plane Mirror)
  • Measuring Length
    0 to 5 m
  • Dimensions
    199 x 134 x 68 mm, 450 x 400 x 150 mm (L x W x H)
  • Frequency Stability
    2 to 10-8
  • Laser Source
    HeNe laser
  • Power Supply
    100 to 240 VAC, 47 to 63 Hz
  • Measurement Range
    0 to 5 m
  • Weight
    1.6 kg, 8 kg
  • Measurement Resolution
    20 pm
  • Measurement Speed
    3 m/s
  • Pitch & Yaw Angle Resolution
    0.01 µrad
  • Note
    Warm-up time: 10 to 20 minutes

Connections & Interface

  • Interface
    RS232C, USB

Environmental Conditions

  • Operating Temperature
    15 to 30 Degree C

Applications

  • Applications
    Quality Control, Calibration, Development, Science / Research, OEM Applications
