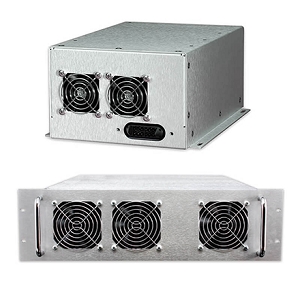

LDQCW-600-XX-YY-ZZ

Laser Diode Driver by Lumina Power, Inc.

Note: Your Quotation Request will be directed to Lumina Power, Inc..

The LDQCW-600-XX-YY-ZZ from Lumina Power, Inc. is a Laser Diode Driver with Operating Temperature 0 to 40 Degree C, Storage Temperature -20 to 85 Degree C, Output Current 200 A, Pulse Width 50 µs to 2 ms, Input Voltage 90 to 264 V AC. More details for LDQCW-600-XX-YY-ZZ can be seen below.

Product Specifications View similar products

Product Details

  • Part Number
    LDQCW-600-XX-YY-ZZ
  • Manufacturer
    Lumina Power, Inc.
  • Description
    Quasi-CW Diode Laser Drivers

Environmental Conditions

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -20 to 85 Degree C

Connections & Interface

  • Connector
    15 Pin “D” Sub Female

General Parameters

  • Operation Mode
    Quasi-CW(Pulsed)
  • Output Current
    200 A
  • Pulse Width
    50 µs to 2 ms
  • Input Voltage
    90 to 264 V AC
  • Repetition Rate
    10 kHz
  • Output Power
    600 W
  • Rise Time
    25 us
  • Fall Time
    25 us
  • RoHs
    Yes

Physical Properties

  • Dimensions
    27.2 x 18.5 x 12.2 cm
