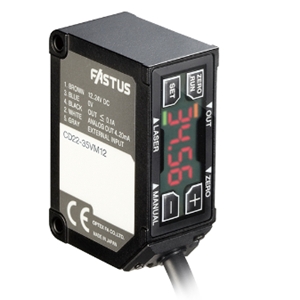

CD22-15-485M12

Laser Displacement Sensor by Optex AOC
53 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Optex AOC.

The CD22-15-485M12 from Optex AOC is a Laser Displacement Sensor with Measure/Sensing Distance 15 mm ±5 mm, Wavelength 655 nm, Sampling Rate 500 µs, 1000 µs, 2000 µs, 4000 µs, AUTO, Supply Voltage 12 to 24 VDC, Laser Power 390 µW. More details for CD22-15-485M12 can be seen below.

Product Specifications

Product Details

  • Part Number
    CD22-15-485M12
  • Manufacturer
    Optex AOC
  • Description
    Compact Laser Displacement Sensors

Applications

  • Application
    Positioning for metal plate mounting, Detection of presence/height of electronic components, Slackness measurements for rubber materials, Electrode thickness measurement

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Measure/Sensing Distance
    15 mm ±5 mm
  • Wavelength
    655 nm
  • Measurement Range
    ±5 mm
  • Sampling Rate
    500 µs, 1000 µs, 2000 µs, 4000 µs, AUTO
  • Accuracy (Repeat)
    1 µm
  • Ambient illuminance
    3000 lx
  • Supply Voltage
    12 to 24 VDC
  • Beam Shape
    Spot
  • Cable Length
    300 mm
  • Case and cover material
    PPSU (Cover)
  • Certifications
    CE
  • Coax Cable Material
    PVC
  • Current Consumption
    70 mA
  • Housing Material
    Aluminum die-cast Front
  • Indicators
    Laser emission indicator (green)/zero reset indicator (red)/output indicator (orange)/mode indicator (red)
  • Laser Power
    390 µW
  • IP Rating
    IP67
  • Spot Size
    0.5 x 0.7 mm
  • Laser Class
    Class 1, Class I
  • Linearity
    ±0.1% F.S.
  • Relative Humidity
    35 to 85% RH
  • RoHs
    Yes
  • Shock Resistance
    500 m/s2, 50 G, 3 Times
  • Temperature Drift/characteristics
    ±0.02% F.S./Degree C (Drift)
  • Vibration Resistance
    10 to 55 Hz, 1.5 mm
  • Warm up time
    5 minutes

Connections & Interface

  • Connector
    M12-5 pin
  • Interface
    RS-485

Environmental Conditions

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Physical Properties

  • Weight
    60 g
Click to view more product details on manufacturer's website
