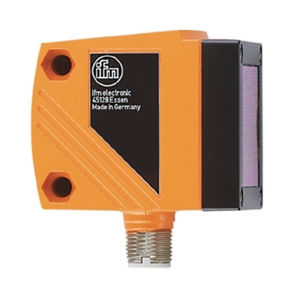

O1D300

Laser Displacement Sensor by ifm
Request Quote

Note: Your Quotation Request will be directed to ifm.

The O1D300 from ifm is a Laser Displacement Sensor with Measure/Sensing Distance 0.2 to 10 m, Wavelength 650 nm, Sampling Rate 1 to 33 Hz, Laser Power <4 mW. More details for O1D300 can be seen below.

Product Specifications

Product Details

  • Part Number
    O1D300
  • Manufacturer
    ifm

Applications

  • Application
    Industrial applications / factory automation

General Parameters

  • Optical System
    Diffuse Reflection
  • Measuring Method
    Long-range/Time of Flight (ToF) Sensors
  • Output Type
    PNP Output, Analog Output
  • Measure/Sensing Distance
    0.2 to 10 m
  • Wavelength
    650 nm
  • Measurement Range
    0.2 to 10 m
  • Sampling Rate
    1 to 33 Hz
  • Accuracy (Repeat)
    20 to 1000 cm
  • Analog Current
    4 to 20 mA
  • Analog Voltage
    0 to 10 V
  • Beam Shape
    Spot
  • Case and cover material
    Glass (Front Pane)
  • Certifications
    CE
  • Current Consumption
    <150 mA
  • Display
    2 x LED, Yellow
  • Housing Material
    Diecast zinc
  • Laser Power
    <4 mW
  • IP Rating
    IP67
  • Spot Size
    25 mm
  • Laser Class
    Class 2, Class III
  • Sample Rate
    1 to 33 Hz
  • Load Impedance
    250 to 5000 Ohms
  • Pulse Duration
    1.3 ns
  • Window Material
    PC

Connections & Interface

  • Connector
    M12
  • Interface
    IO-Link

Environmental Conditions

  • Operating Temperature
    -10 to 60 Degree C

Physical Properties

  • Dimensions
    59 x 42 x 52 mm
  • Weight
    240 g
Click to view more product details on manufacturer's website
