ZX-LT005

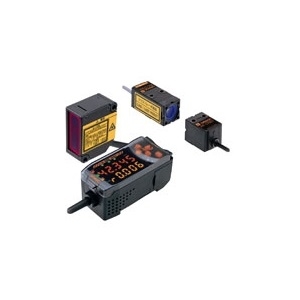

Laser Displacement Sensor by Omron Americas

Note: Your Quotation Request will be directed to Omron Americas.

The ZX-LT005 from Omron Americas is a Laser Displacement Sensor with Measure/Sensing Distance 0 to 500 mm, Wavelength 650 nm, Resolution 4 µm, Repeatability 4 µm, Laser Power 0.35 mW. More details for ZX-LT005 can be seen below.

Product Specifications

Product Details

  • Part Number
    ZX-LT005
  • Manufacturer
    Omron Americas

General Parameters

  • Optical System
    Through-beam
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    NPN Output, PNP Output
  • Measure/Sensing Distance
    0 to 500 mm
  • Wavelength
    650 nm
  • Resolution
    4 µm
  • Repeatability
    4 µm
  • Ambient illuminance
    10000 lx
  • Cable Length
    Up to 10 m
  • Case and cover material
    Polyetherimide, Polycarbonate
  • Laser Power
    0.35 mW
  • IP Rating
    IP40
  • Laser Class
    Class 1, Class II
  • Measurement Width
    5 mm
  • Relative Humidity
    35 to 85% RH
  • Temperature Drift/characteristics
    ±0.2% FS/ Degree C
  • Tightening torque
    0.3 N.m
  • Window Material
    Glass (Front filter)

Environmental Conditions

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -25 to 70 Degree C

Physical Properties

  • Weight
    220 g
