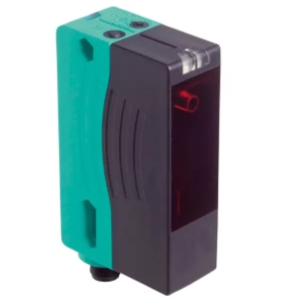

VDM28-8-L1-IO/73c/110/122

Laser Displacement Sensor by Pepperl+Fuchs
49 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Pepperl+Fuchs.

The VDM28-8-L1-IO/73c/110/122 from Pepperl+Fuchs is a Laser Displacement Sensor with Measure/Sensing Distance 0.2 to 8 m, Wavelength 660 nm, Response Time 10 ms, Supply Voltage 18 to 30 VDC. More details for VDM28-8-L1-IO/73c/110/122 can be seen below.

Product Specifications

Product Details

  • Part Number
    VDM28-8-L1-IO/73c/110/122
  • Manufacturer
    Pepperl+Fuchs

Applications

  • Application
    Object identification or object classification, Positioning, Level measurement, Collision avoidance/distance measurement, Compartment occupied checks, Rack fine positioning, Stack height control, Coil measurement, Dip monitoring, Lift height checks

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Pulse Ranging Technology (PRT)
  • Output Type
    Push-Pull Output
  • Measure/Sensing Distance
    0.2 to 8 m
  • Wavelength
    660 nm
  • Response Time
    10 ms
  • Absolute Accuracy
    ±25 mm
  • Accuracy (Repeat)
    <5 mm
  • Ambient illuminance
    50000 lx
  • Supply Voltage
    18 to 30 VDC
  • Beam Divergence
    <1.5 mrad
  • Beam Shape
    Spot
  • Certifications
    CE
  • Housing Material
    Plastic, PMMA
  • Indicators
    LED green (Operation)
  • IP Rating
    IP67
  • Spot Size
    <10 mm
  • Laser Class
    Class 1
  • Lifetime
    85000 h
  • Operating Voltage
    18 to 30 VDC
  • Pulse Duration
    4 ns
  • Pulse Energy
    <1.5 nJ
  • Pulse Repetition Rate
    250 kHz
  • Switching Frequency
    50 Hz
  • Switching Voltage
    30 VDC

Connections & Interface

  • Connector
    M12-4 Pin
  • Interface
    IO-Link

Environmental Conditions

  • Operating Temperature
    -30 to 55 Degree C
  • Storage Temperature
    -30 to 70 Degree C

Physical Properties

  • Dimensions
    80 x 25.8 x 54.6 mm (H x W x D)
  • Weight
    90 g
