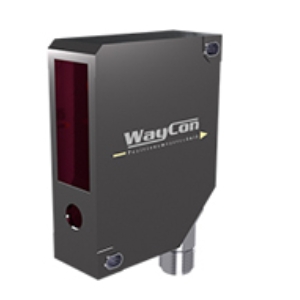

LAS-TB-100

Laser Displacement Sensor by WayCon Positionsmesstechnik
35 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to WayCon Positionsmesstechnik.

The LAS-TB-100 from WayCon Positionsmesstechnik is a Laser Displacement Sensor with Measure/Sensing Distance 100 to 200 mm, Wavelength 650 nm, Response Time <2 ms, Resolution 39 to 150 µm, Supply Voltage 12 to 28 VDC. More details for LAS-TB-100 can be seen below.

Product Specifications

Product Details

  • Part Number
    LAS-TB-100
  • Manufacturer
    WayCon Positionsmesstechnik

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    Analog Output
  • Measure/Sensing Distance
    100 to 200 mm
  • Wavelength
    650 nm
  • Response Time
    <2 ms
  • Resolution
    39 to 150 µm
  • Supply Voltage
    12 to 28 VDC
  • Analog Current
    4 to 20 mA
  • Analog Voltage
    0 to 10 V
  • Beam Size
    0.2 to 0.74 x 2.8 to 3.7 mm (H x W)
  • Current Consumption
    80 mA
  • Housing Material
    aluminium
  • Indicators
    LED green, LED red
  • IP Rating
    IP67
  • Laser Class
    Class 1
  • Linearity
    ±0.123 to ±0.457 mm
  • Measuring Frequency
    0.5 kHz
  • Output Impedance
    >100 kOhms

Connections & Interface

  • Connector
    M8, 4-pin

Environmental Conditions

  • Operating Temperature
    0 to 50 Degree C
