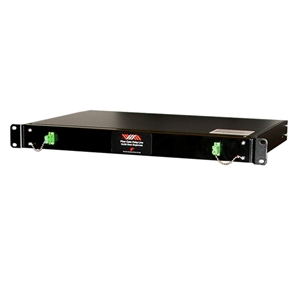

D8 Series

Optical Delay Line by Fiber Plus International

Note: Your Quotation Request will be directed to Fiber Plus International.

The D8 Series from Fiber Plus International is a Optical Delay Line with Operating Wavelength 850 nm, 1300 nm, 1310 nm, 1550 nm, Insertion Loss 0.3 to 0.5 dB. More details for D8 Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    D8 Series
  • Manufacturer
    Fiber Plus International

Applications

  • Applications
    System emulation of loss, length, time delay and reflectance, Use in conjunction with fiber optic transceivers, transmitters and receivers for radar testing, signal processing, phased antenna array and phase noise testing, Optical buffer for optical networks, Laser spectroscopic measurement, Time delay for opto-electronic oscillators, Optical network testing and analysis, Optical packet switching, buffering, routing and input/output synchronization, Product Demonstrations, Equipment Calibration

General Parameters

  • Operating Wavelength
    850 nm, 1300 nm, 1310 nm, 1550 nm
  • Configuration
    Fiber Coupled
  • Package Type
    Rackmount
  • Dimensions
    19 (L) x 13 to 18 (W) x 1.75 to 3.5 (H) Inches
  • Optical Return Loss
    -65 to -55 dB
  • Insertion Loss
    0.3 to 0.5 dB

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Fiber Parameters

  • Fiber Connectors
    FC, ST, SC, FC/APC, SC/APC, LC, LC/APC, E2000, E2000/APC
  • Fiber Type
    Single Mode, Multi Mode
