AFODa-b-c-d-e/e

Optical Delay Line by YOFC

Note: Your Quotation Request will be directed to YOFC.

The AFODa-b-c-d-e/e from YOFC is an Optical Delay Line that operates at a frequency range from 100 MHz to 18 GHz. It has a Delay range of 2 - 128 µs with a delay step of 2 µs and a delay accuracy of 1%. This optical delay line has a switching time of up to 2 ms and an optical wavelength of 1310 or 1550 nm (optional). It has a dynamic range of 98 dB-Hz and a noise figure of up to 48 dB. This optical delay line requires an AC supply of 220 V and can be controlled remotely via an RS232 connector.

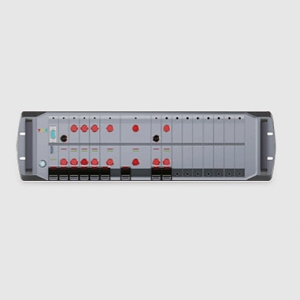

The AFODa-b-c-d-e/e has a pluggable blade modular design with consists of a 3U 19" rack-mount chassis, RF optical transceiver module, multiple fiber-optic delay module, optical amplifier module, and control module. It is ideal for radar system testing, phased array antennas, phase noise testing, signal processing, and test & calibration labs applications.

Product Specifications

Product Details

  • Part Number
    AFODa-b-c-d-e/e
  • Manufacturer
    YOFC
  • Description
    2 to 128 µs, Modular RF Optical Delay Line System for Radar System Testing Applications

Applications

  • Applications
    Radar system testing, Phased array antennas, Phase noise testing, Signal processing, Test & calibration labs

General Parameters

  • Operating Wavelength
    1310 to 1550 nm
  • Configuration
    Fiber Coupled (with Front Panel Control)
  • Delay Range
    2 to 128 µs
  • Package Type
    Rackmount
  • Frequency
    100 MHz to 18 GHz
  • Type
    Variable
  • Interface
    RS232, SMA
  • Delay Steps
    2 us

Fiber Parameters

  • Fiber Connectors
    FC/APC
  • Fiber Type
    SMF-28
