550FIR50

Optical Filter by Knight Optical (UK) Ltd
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Knight Optical (UK) Ltd.

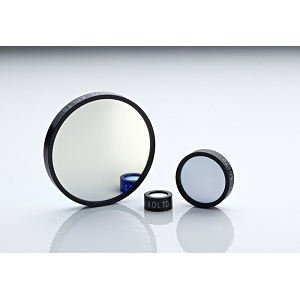

The 550FIR50 from Knight Optical (UK) Ltd is a Optical Filter with Wavelength 530 to 570 nm, Center Wavelength(CWL) 550 nm, Bandwidth (FWHM) 40 nm, Blocking Wavelength 200 to 1150 nm, Filter Diameter 50 mm. More details for 550FIR50 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    550FIR50
  • Manufacturer
    Knight Optical (UK) Ltd

General Parameters

  • Filter Type
    Bandpass Interference Filter
  • Glass Color
    Visible, NIR
  • Wavelength
    530 to 570 nm
  • Center Wavelength(CWL)
    550 nm
  • Bandwidth (FWHM)
    40 nm
  • Bandwidth
    40 nm
  • Blocking Wavelength
    200 to 1150 nm
  • Optical Density
    5
  • Transmission
    70 %

Physical Properties

  • Filter Shape
    Round
  • Substrate/Material
    Silver
  • Thickness
    6.1 mm
  • Filter Diameter
    50 mm
