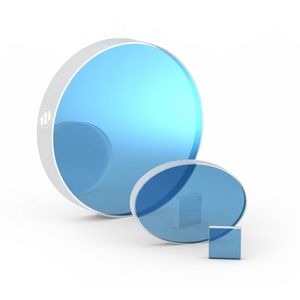

PP-UVFS-25.4-3.0-AR505-DM290

Optical Filter by OPTOMAN
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OPTOMAN.

The PP-UVFS-25.4-3.0-AR505-DM290 from OPTOMAN is a Optical Filter with Wavelength 585+650 nm, 532 nm, Filter Diameter 25.4 mm. More details for PP-UVFS-25.4-3.0-AR505-DM290 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PP-UVFS-25.4-3.0-AR505-DM290
  • Manufacturer
    OPTOMAN
  • Description
    IBS coated Wavelength Separator for Nd:YAG II harmonic and 585 + 650 nm

General Parameters

  • Filter Type
    Dichroic Filter, Laser Filter
  • Glass Color
    UltraViolet
  • Wavelength
    585+650 nm, 532 nm
  • Chamfers
    0.2 to 0.4 mm x 45 Degree
  • Parallelism
    3 arcmin

Physical Properties

  • Filter Shape
    Round
  • Substrate/Material
    UV Fused Silica
  • Thickness
    3 mm
  • Thickness Tolerance
    ±0.1 mm
  • Filter Diameter
    25.4 mm
  • Diameter Tolerance
    +0/-0.1 mm
  • Surface Flatness
    λ/8 @ 633 nm
  • Surface Quality
    20 to 10 scratch-dig
