IF UI 515

Optical Filter by Schneider-Kreuznach
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Schneider-Kreuznach.

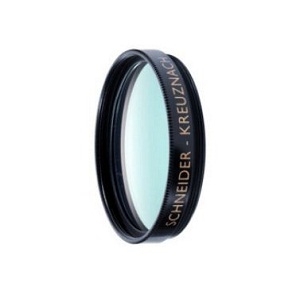

The IF UI 515 from Schneider-Kreuznach is a Optical Filter with Wavelength 380 to 650 nm, Blocking Wavelength 300 - 375 & 750 - 1035 nm, Filter Diameter 10 to 74 mm. More details for IF UI 515 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IF UI 515
  • Manufacturer
    Schneider-Kreuznach

General Parameters

  • Filter Type
    Bandpass Filter
  • Glass Color
    UltraViolet, Visible, IR
  • Wavelength
    380 to 650 nm
  • Wavelength Tolerance
    +/- 10 nm
  • Blocking Wavelength
    300 - 375 & 750 - 1035 nm
  • Parallelism
    1 arc minute
  • Transmission
    0.9
  • Note
    Mount: M25.5, M67, AR Coating: Multi Resistant Coating

Physical Properties

  • Filter Shape
    Round
  • Thickness
    2.0 mm
  • Thickness Tolerance
    ± 0.2 mm
  • Filter Diameter
    10 to 74 mm
  • Diameter Tolerance
    0 to 0.3 mm
  • Surface Quality
    5/2 × 0.16
