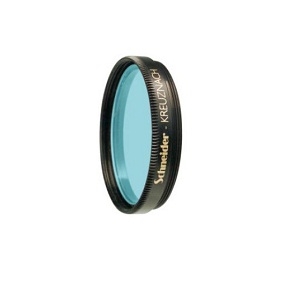

IFG BP 490-180

Optical Filter by Schneider-Kreuznach
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Schneider-Kreuznach.

The IFG BP 490-180 from Schneider-Kreuznach is a Optical Filter with Wavelength 400 to 580 nm, Center Wavelength(CWL) 490 nm, Bandwidth (FWHM) 180 nm, Filter Diameter 10 to 74 mm. More details for IFG BP 490-180 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IFG BP 490-180
  • Manufacturer
    Schneider-Kreuznach

General Parameters

  • Filter Type
    Bandpass Filter
  • Glass Color
    Sky Blue
  • Wavelength
    400 to 580 nm
  • Wavelength Tolerance
    +/- 15 nm
  • Center Wavelength(CWL)
    490 nm
  • Bandwidth (FWHM)
    180 nm
  • Bandwidth
    180 nm
  • Transmission
    0.8
  • RoHs
    Yes
  • Note
    Mount: M25.5, M67

Physical Properties

  • Filter Shape
    Round
  • Thickness
    2.0 mm
  • Thickness Tolerance
    ± 0.2 mm
  • Filter Diameter
    10 to 74 mm
  • Surface Quality
    5/2 x 0.1
