FND0.5-1D-BB

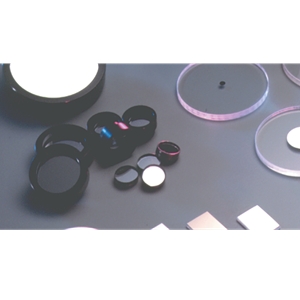

Optical Filter by Teledyne Acton Optics
281 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Teledyne Acton Optics.

The FND0.5-1D-BB from Teledyne Acton Optics is a Optical Filter with Wavelength 190 to 1700 nm, Filter Diameter 1 Inch. More details for FND0.5-1D-BB can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FND0.5-1D-BB
  • Manufacturer
    Teledyne Acton Optics
  • Description
    190 to 1700 nm Broadband UV-NIR Neutral Density Filters

General Parameters

  • Filter Type
    Neutral Density Filter
  • Glass Color
    UltraViolet, NIR
  • Wavelength
    190 to 1700 nm
  • Chamfers
    0.5 mm x 45 degrees
  • Clear Aperture
    90%
  • Optical Density
    0.5
  • Optical Density Tolerance
    ±10%
  • Parallelism
    3 arcmin
  • Transmission
    28 to 35.5%

Physical Properties

  • Filter Shape
    Round
  • Substrate/Material
    UV Fused Silica
  • Thickness Tolerance
    ±0.25 nm
  • Filter Diameter
    1 Inch
  • Diameter Tolerance
    +0.00/-0.005 Inch
  • Surface Flatness
    <2λ
  • Surface Quality
    20-10 scratch-dig
Click to view more product details on manufacturer's website
