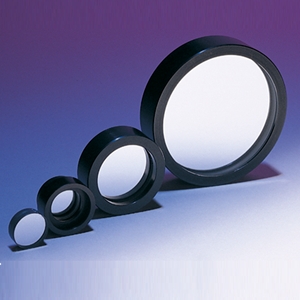

FW200-W-1D

Optical Filter by Teledyne Acton Optics
281 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teledyne Acton Optics.

The FW200-W-1D from Teledyne Acton Optics is a Optical Filter with Wavelength 200 nm, Bandwidth (FWHM) 60 nm, Filter Diameter 25.4 mm (Unmounted), 30.48 mm (Mounted). More details for FW200-W-1D can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FW200-W-1D
  • Manufacturer
    Teledyne Acton Optics
  • Description
    200 nm Wideband Filters with 20.32 nm Clear Aperture

General Parameters

  • Filter Type
    UV Bandpass Filter, Wideband Filters
  • Glass Color
    UltraViolet
  • Wavelength
    200 nm
  • Wavelength Tolerance
    ±10 nm
  • Bandwidth (FWHM)
    60 nm
  • FWHM Tolerance
    ±20 nm
  • Clear Aperture
    20.32 nm
  • Transmission
    45%

Physical Properties

  • Filter Shape
    Round
  • Substrate/Material
    UV grade fused silica
  • Thickness
    2.5 mm (Unmounted), 9.53 mm (Mounted)
  • Filter Diameter
    25.4 mm (Unmounted), 30.48 mm (Mounted)
  • Diameter Tolerance
    +0/-0.127 mm
