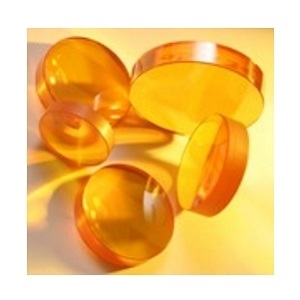

STSL-10.6-175-249

Optical Lens by Sintec Optronics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

The STSL-10.6-175-249 from Sintec Optronics is a Optical Lens with Wavelength Range 10.6 µm, Focal Length 249.4 mm, Diameter 48 mm, Edge Thickness(ET) 3 mm. More details for STSL-10.6-175-249 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    STSL-10.6-175-249
  • Manufacturer
    Sintec Optronics
  • Description
    10.6 µm Zinc Selenide Scan Lenses, F-Theta Lenses

General Parameters

  • Lens Type
    Scan Lenses, F-Theta Lenses
  • Wavelength Range
    10.6 µm
  • Focal Length
    249.4 mm
  • Back Focal Length(BFL)
    253.3 mm
  • Effective Focal Length(EFL)
    249.4 mm
  • Diameter
    48 mm
  • Edge Thickness(ET)
    3 mm
  • Edge Thickness Tolerance(Te)
    +/-0.1 mm
  • Substrate/Material
    Zinc Selenide
  • Note
    Scan field: 175 x 175 mm, Flange Focal length: 258.5 mm

Applications

  • Application
    Material processing, Drilling, Welding, Cutting, Microscopy, Ophthalmology
