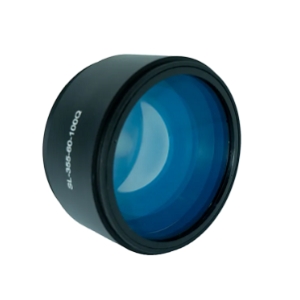

SL-1064-L1000-1400Q-D14

Optical Lens by Wavelength Opto-Electronic

Note: Your Quotation Request will be directed to Wavelength Opto-Electronic.

The SL-1064-L1000-1400Q-D14 from Wavelength Opto-Electronic is a Optical Lens with Wavelength Range 1064 nm, Focal Length 1400 mm, Diameter 14 mm (Input beam). More details for SL-1064-L1000-1400Q-D14 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SL-1064-L1000-1400Q-D14
  • Manufacturer
    Wavelength Opto-Electronic
  • Description
    1064 nm Fused Silica F-Theta Lenses

General Parameters

  • Lens Type
    F-Theta Lenses
  • Wavelength Range
    1064 nm
  • Focal Length
    1400 mm
  • Effective Focal Length(EFL)
    1400 mm
  • Diameter
    14 mm (Input beam)
  • Substrate/Material
    Fused Silica
  • Note
    Scan field:1000 mm, Mount thread: 2-(Dia) 4.5, Working Distance: 1571.1 mm
