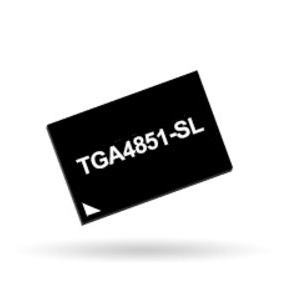

TGA4851-SL

Optical Modulator Driver by Qorvo
13 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Qorvo.

The TGA4851-SL from Qorvo is a Optical Modulator Driver with Data Rate 100 Gb/s, Gain 11 dB, Rise/Fall Time 12.5 psec, Output Voltage/Amplitude 1 to 3 Vpp. More details for TGA4851-SL can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TGA4851-SL
  • Manufacturer
    Qorvo
  • Description
    4 Channel 28 Gb/s QSFP28 Modulator Driver

Physical Properties

  • Package Size
    3.75 x 7.52 x 0.70 mm

Applications

  • Applications
    28 Gb/s QSFP28 / CFP4 / CFP2 Quad Driver, EML Driver

General Parameters

  • Data Rate
    100 Gb/s
  • Gain
    11 dB
  • Rise/Fall Time
    12.5 psec
  • No of Channels
    Quad
  • Package Type
    Surface Mount
  • Output Voltage/Amplitude
    1 to 3 Vpp
  • Bandwidth
    15 to 30 GHz
  • Frequency
    DC to 30 MHz
  • Jitter
    0.6 ps(Added RMS Jitter)
  • Output Power
    1.5 Vpp
  • Power Dissipation
    150 mW
  • RoHs
    Yes

Technical Documents
Click to view more product details on manufacturer's website
