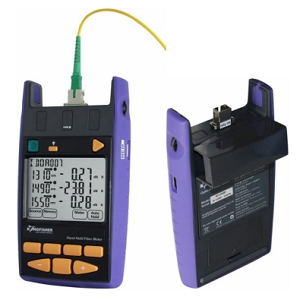

KI2600-H6-APC

Optical Power Meter by Kingfisher International
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Kingfisher International.

The KI2600-H6-APC from Kingfisher International is a Optical Power Meter with Measurement Range(Power) -47 to 33 dBm, Wavelength Range 800 to 1700 nm (Response wavelength), Calibrated Wavelength 1310 to 1610 nm, Linearity 0.04 dB (Mid-range linearity), Resolution 0.01 dB. More details for KI2600-H6-APC can be seen below.

Product Specifications

Product Details

  • Part Number
    KI2600-H6-APC
  • Manufacturer
    Kingfisher International
  • Description
    800 to 1700 nm High Power Fiber Optic Power Meter with InGaAs - High Power (Corning SMF-28e fiber & APC polish connector)

General Parameters

  • Measurement Unit
    dB, dBm
  • Measurement Range(Power)
    -47 to 33 dBm
  • Wavelength Range
    800 to 1700 nm (Response wavelength)
  • Equipment Type
    Handheld
  • Detector Type
    Indium Gallium Arsenide (InGaAs)
  • Calibrated Wavelength
    1310 to 1610 nm
  • Auto off
    Selectable
  • Relative Humidity
    0 to 95%
  • Tone Detection
    150 to 9999 Hz
  • Power Range
    -47 to 33 dBm
  • Memory
    1,000 records of 4 wavelengths test
  • Polarization Sensitivity
    <0.05 dB
  • Power Calibration Accuracy
    ±5%
  • Battery Life
    Up to 1000 Hours
  • Warranty
    3 years
  • Linearity
    0.04 dB (Mid-range linearity)
  • Resolution
    0.01 dB

Connections & Interface

  • Interface
    Micro-USB or USB-C for power & software / USB-A Flash Drive
  • Optical Connector
    SC, LC, MPO, FC, UPP

Environmental Conditions

  • Operating Temperature
    -15 to 55 Degree C
  • Storage Temperature
    -25 to 70 Degree C

Physical Properties

  • Dimensions
    124 x 81 x 25 mm
  • Weight
    1.5 kg (Shipping Weight), 0.42 kg (Unit weight)

Technical Documents
Click to view more product details on manufacturer's website
Request a Quote
