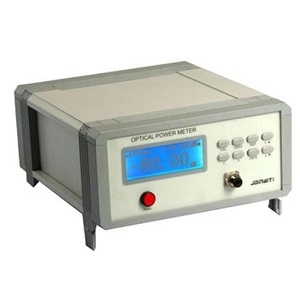

ST-3201

Optical Power Meter by Sunma International Industry Ltd.

Note: Your Quotation Request will be directed to Sunma International Industry Ltd..

The ST-3201 from Sunma International Industry Ltd. is a Optical Power Meter with Measurement Range(Power) -75 to 6 dBm, Wavelength Range 850 to 1550 nm, Calibrated Wavelength 850 nm, 980 nm, 1310 nm, 1480 nm, 1550 nm, Resolution 0.01 dB. More details for ST-3201 can be seen below.

Product Specifications

Product Details

  • Part Number
    ST-3201
  • Manufacturer
    Sunma International Industry Ltd.

General Parameters

  • Measurement Unit
    dBm
  • Measurement Range(Power)
    -75 to 6 dBm
  • Wavelength Range
    850 to 1550 nm
  • Equipment Type
    Benchtop / Rackmount
  • Detector Type
    Indium Gallium Arsenide (InGaAs)
  • Calibrated Wavelength
    850 nm, 980 nm, 1310 nm, 1480 nm, 1550 nm
  • Power Range
    -75 to 6 dBm
  • Power Requirements
    220 VAC, 50 Hz
  • Uncertainty
    ±3%
  • Resolution
    0.01 dB

Connections & Interface

  • Interface
    RS232

Environmental Conditions

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -25 to 70 Degree C

Physical Properties

  • Dimensions
    290 x 255 x 85 mm
  • Weight
    30 kg
