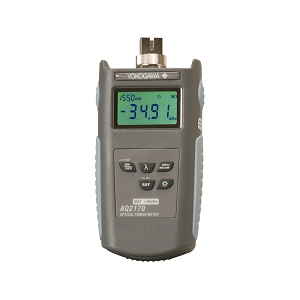

AQ2170 Series

1 more product from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Yokogawa Test & Measurement Corporation.

The AQ2170 Series from Yokogawa Test & Measurement Corporation is a Optical Power Meter with Measurement Range(Power) -70 to 26 dBm, Wavelength Range 850 to 1650 nm, Resolution 0.01 to 0.1 dB. More details for AQ2170 Series can be seen below.

Product Specifications

Product Details

  • Part Number
    AQ2170 Series
  • Manufacturer
    Yokogawa Test & Measurement Corporation
  • Description
    850 to 1650 nm Handheld Optical Power Meter

General Parameters

  • Measurement Unit
    dBm, mW, µW, dB
  • Measurement Range(Power)
    -70 to 26 dBm
  • Wavelength Range
    850 to 1650 nm
  • Equipment Type
    Handheld, Pocket-size
  • Detector Type
    Indium Gallium Arsenide (InGaAs)
  • Battery Type
    AAA dry or rechargeable battery
  • Relative Humidity
    20 to 80% (Operating), 5 to 95% (Storage)
  • Fiber Type
    Single Mode, Multi Mode
  • Power Range
    -70 to 26 dBm
  • Battery Life
    40 hours
  • Uncertainty
    ±5%
  • Fiber Core Diameter
    50 µm, 62.5 µm
  • Resolution
    0.01 to 0.1 dB

Connections & Interface

  • Optical Connector
    FC, SC, LC

Environmental Conditions

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -20 to 70 Degree C

Physical Properties

  • Dimensions
    63 x 116 x 35 mm (W x H x D)
  • Weight
    160 g
